基于Element-Plus ElUpload组件，实现前端直接上传文件到阿里云OSS服务

2022年4月14日

需求背景

上传文件需要直接通过客户端上传到阿里云oss服务，无需通过服务器中转，减少服务器压力

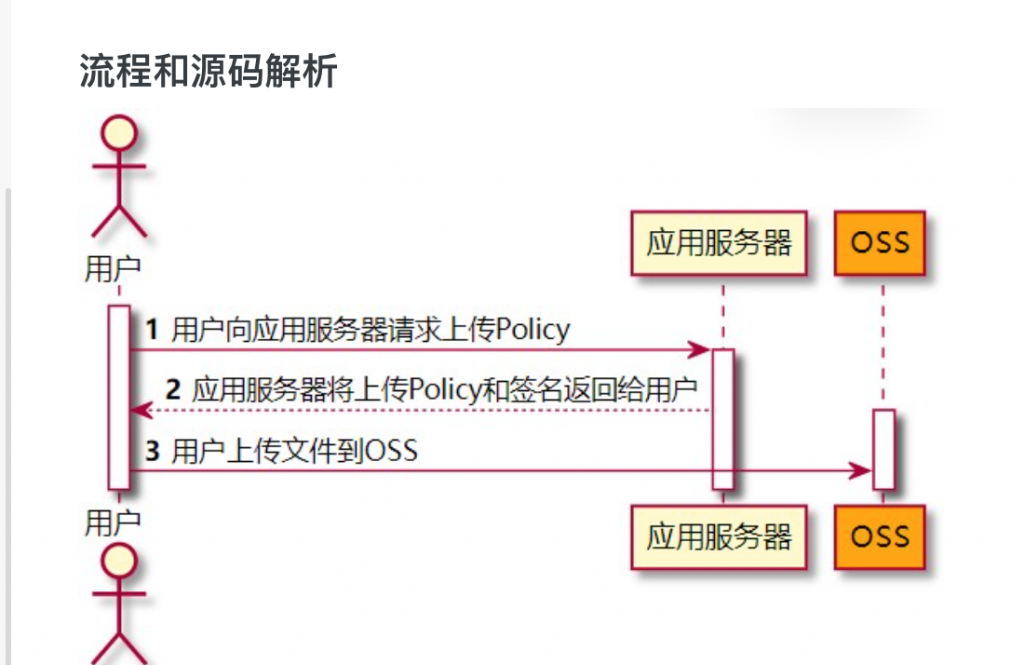

交互流程示意图

需要开发的内容

客户端调用接口从自有的服务端当中获取上传所需要的参数（在有效期内可以重复使用同一套参数值，可以在本地做缓存）
自有服务端通过accessKey\Secret值生成前端需要的上传参数（需要设定有效期，超过有效期后参数无效）
客户端获取到上传参数后将参数与上传的文件一并提交到阿里云OSS服务器（请求路径由上传参数决定）

1.服务端核心代码

 /**
     * 获取用于客户端直传所需要的参数
     *
     * @return 客户端直传需要的参数
     */
    @Override
    public OssClientUploadDto getClientUploadParams(String dir) {
        try {
            dir = StrUtil.removePrefix(dir, "/");
            String endPoint = StrUtil.removePrefix(properties.getEndpoint(), "https://");
            String host = "https://" + properties.getBucket() + "." + endPoint;
            //默认1小时
            long expireTime = 60;
            long expireEndTime = System.currentTimeMillis() + expireTime * 60 * 1000;
            Date expiration = new Date(expireEndTime);
            PolicyConditions cond = new PolicyConditions();
            cond.addConditionItem(PolicyConditions.COND_CONTENT_LENGTH_RANGE, 0, 1048576000);

            String postPolicy = getClient().generatePostPolicy(expiration, cond);
            byte[] binaryData = postPolicy.getBytes(StandardCharsets.UTF_8);
            String encodedPolicy = BinaryUtil.toBase64String(binaryData);
            String postSignature = getClient().calculatePostSignature(postPolicy);

            OssClientUploadDto dto = new OssClientUploadDto();
            dto.setAccessid(properties.getAccessKey());
            dto.setPolicy(encodedPolicy);
            dto.setSignature(postSignature);
            dto.setDir(dir);
            dto.setHost(host);
            dto.setExpire(String.valueOf(expireEndTime / 1000));
            return dto;
        } catch (Exception e) {
            log.error(e.getMessage(), e);
            throw new BusinessException(e.getMessage(), e);
        }
    }

/**

* 获取用于客户端直传所需要的参数

* @return 客户端直传需要的参数

@Override

public OssClientUploadDto getClientUploadParams(String dir) {

try {

dir = StrUtil.removePrefix(dir, "/");

String endPoint = StrUtil.removePrefix(properties.getEndpoint(), "https://");

String host = "https://" + properties.getBucket() + "." + endPoint;

//默认1小时

long expireTime = 60;

long expireEndTime = System.currentTimeMillis() + expireTime * 60 * 1000;

Date expiration = new Date(expireEndTime);

PolicyConditions cond = new PolicyConditions();

cond.addConditionItem(PolicyConditions.COND_CONTENT_LENGTH_RANGE, 0, 1048576000);

String postPolicy = getClient().generatePostPolicy(expiration, cond);

byte[] binaryData = postPolicy.getBytes(StandardCharsets.UTF_8);

String encodedPolicy = BinaryUtil.toBase64String(binaryData);

String postSignature = getClient().calculatePostSignature(postPolicy);

OssClientUploadDto dto = new OssClientUploadDto();

dto.setAccessid(properties.getAccessKey());

dto.setPolicy(encodedPolicy);

dto.setSignature(postSignature);

dto.setDir(dir);

dto.setHost(host);

dto.setExpire(String.valueOf(expireEndTime / 1000));

return dto;

} catch (Exception e) {

log.error(e.getMessage(), e);

throw new BusinessException(e.getMessage(), e);

}

@Getter
@Setter
public class OssClientUploadDto {
    private String accessid;
    private String host;
    private String policy;
    private String signature;
    private String expire;
    private String dir;

}

@Getter

@Setter

public class OssClientUploadDto {

private String accessid;

private String host;

private String policy;

private String signature;

private String expire;

private String dir;

}

还需要自行写一个Controller接受客户端请求后调用上面的方法返回给客户端

2.客户端

此处的客户端代码使用Element-Plus库当中的ElUpload组件为例

 <el-upload
    ref="refUpload"
    :action="conf.action"
    method="post"
    name="file"
    :data="uploadData"
    :accept="accept"
    :list-type="listType"
    :limit="limit"
    auto-upload
    :file-list="uploadFiles"
    :on-success="handleUploadSuccess"
    :on-preview="handlePictureCardPreview"
    :on-exceed="handleUploadExceed"
    :on-remove="handleRemove"
    :on-error="handleError"
    :before-upload="handleBeforeUpload"
    v-bind="$attrs"
    v-if="showUpload"
  >
    <template #default v-if="listType==='picture-card'">
      <el-icon>
        <el-icon-plus/>
      </el-icon>
    </template>
    <template #default v-else>
      <el-tooltip placement="top" :content="tooltip">
        <el-button type="primary" icon="el-icon-plus">{{ uploadButtonText }}</el-button>
      </el-tooltip>
    </template>
    <template #file="{file}" v-if="listType==='picture-card'">
      <slot v-if="isImage(file.url)" name="file" :file="file"></slot>
    </template>
  </el-upload>

<el-upload

ref="refUpload"

:action="conf.action"

method="post"

name="file"

:data="uploadData"

:accept="accept"

:list-type="listType"

:limit="limit"

auto-upload

:file-list="uploadFiles"

:on-success="handleUploadSuccess"

:on-preview="handlePictureCardPreview"

:on-exceed="handleUploadExceed"

:on-remove="handleRemove"

:on-error="handleError"

:before-upload="handleBeforeUpload"

v-bind="$attrs"

v-if="showUpload"

<el-icon>

<el-icon-plus/>

</el-icon>

</template>

<el-tooltip placement="top" :content="tooltip">

<el-button type="primary" icon="el-icon-plus">{{ uploadButtonText }}</el-button>

</el-tooltip>

</template>

</template>

</el-upload>

页面初始化的时候需要调用后台接口获取上传参数，只有上传参数获取成功才渲染上传组件

<script setup>
import {getClientUploadParams,checkExpire,getRandFileName} from "../oss";
// ... 其余代码自行补充
//标识是否显示上传按钮，针对客户端直传需要等待获取参数后再渲染上传组件，防止data属性无法透传
const showUpload = ref(false)
const conf = reactive({
  action: ''
})
getClientUploadParams().then((uploadParams:any)=>{
    uploadData.value = {
      'key':'',
      'dir': uploadParams['dir'],
      'policy': uploadParams['policy'],
      'OSSAccessKeyId': uploadParams["accessid"],
      'success_action_status' : '200',
      'signature': uploadParams["signature"],
    };
    //文件上传路径
    conf.action = uploadParams["host"]
    showUpload.value = true;
  });
</script>

import {getClientUploadParams,checkExpire,getRandFileName} from "../oss";

// ... 其余代码自行补充

//标识是否显示上传按钮，针对客户端直传需要等待获取参数后再渲染上传组件，防止data属性无法透传

const showUpload = ref(false)

const conf = reactive({

action: ''

})

getClientUploadParams().then((uploadParams:any)=>{

uploadData.value = {

'key':'',

'dir': uploadParams['dir'],

'policy': uploadParams['policy'],

'OSSAccessKeyId': uploadParams["accessid"],

'success_action_status' : '200',

'signature': uploadParams["signature"],

};

//文件上传路径

conf.action = uploadParams["host"]

showUpload.value = true;

});

</script>

选择文件时需要再次校验一下上传参数是否在有效期内

<script setup>
import {getClientUploadParams,checkExpire,getRandFileName} from "../oss";
// ... 其余代码自行补充
//文件上传额外参数
const uploadData = ref({
  key:'',
  dir:'',
  policy:'',
  OSSAccessKeyId:'',
  success_action_status:'',
  signature:'',
})

const handleBeforeUpload = async ({type, size,name}: UploadRawFile) => {
  const mb = size / 1024 / 1024

  if (type.startsWith("video") && mb > 500) {
    $message.error(`上传的视频文件不能大于500M`);
    return false;
  }
  if (type.startsWith("image") && mb > props.maxSize) {
    $message.error(`上传的图片文件不能大于${props.maxSize}M`)
    return false
  }
  //页面直传方式
   //增加参数有效时间校验
    if (!checkExpire()) {
      $message.error(`当前文件上传状态已过期，请重新选择文件`)
      //重新触发
      getClientUploadParams()
      return false;
    }
    //更新上传的文件名
    uploadData.value.key = uploadData.value["dir"] + getRandFileName(name)
}
</script>

import {getClientUploadParams,checkExpire,getRandFileName} from "../oss";

// ... 其余代码自行补充

//文件上传额外参数

const uploadData = ref({

key:'',

dir:'',

policy:'',

OSSAccessKeyId:'',

success_action_status:'',

signature:'',

})

const handleBeforeUpload = async ({type, size,name}: UploadRawFile) => {

const mb = size / 1024 / 1024

if (type.startsWith("video") && mb > 500) {

$message.error(`上传的视频文件不能大于500M`);

return false;

}

if (type.startsWith("image") && mb > props.maxSize) {

$message.error(`上传的图片文件不能大于${props.maxSize}M`)

return false

}

//页面直传方式

//增加参数有效时间校验

if (!checkExpire()) {

$message.error(`当前文件上传状态已过期，请重新选择文件`)

//重新触发

getClientUploadParams()

return false;

}

//更新上传的文件名

uploadData.value.key = uploadData.value["dir"] + getRandFileName(name)

}

</script>

封装的几个js方法

//基于axios封装的接口调用方法，可自行实现
import {request} from 'ueview/utils/http'
import dayjs from "dayjs";

const service = '/system/oss'
const cachedKey = "_ue_client_up_params"

/**
 * 获取上传参数，默认会使用在指定有效期内不会发起多次请求
 */
export async function getClientUploadParams() {
    if (!checkExpire()) {
        return await getParamsFromRemote()
    } else {
        return JSON.parse(window.sessionStorage.getItem(cachedKey));
    }
}

/**
 * 检测上传参数是否过期
 * @returns {boolean}
 */
export function checkExpire() {
    let cached = window.sessionStorage.getItem(cachedKey) || undefined
    if (!cached) {
        return false;
    }
    cached = JSON.parse(cached);
    let expire = cached.expire
    // 可以判断当前expire是否超过了当前时间， 如果超过了当前时间， 就重新取一下，5s 作为缓冲。
    let now = Date.parse(new Date()) / 1000;
    return Number(expire) > now + 5
}

export async function getParamsFromRemote() {
    const now = dayjs().format('YYYYMMDD')
    const dir = "tmp/" + now + "/"
    const result = await request({
        url: `${service}/getClientUploadParams?dir=${dir}`,
        method: 'get',
    })
    window.sessionStorage.setItem(cachedKey, JSON.stringify(result))
    return result;
}

/**
 * 获取随机字符串文件名
 * @param fileName
 * @returns {string}
 */
export function getRandFileName(fileName) {
    let suffix = getSuffix(fileName)
    return randStr(10) + suffix
}

function randStr(len) {
    len = len || 32;
    let chars = 'ABCDEFGHJKMNPQRSTWXYZabcdefhijkmnprstwxyz2345678';
    let maxPos = chars.length;
    let pwd = '';
    for (let i = 0; i < len; i++) {
        pwd += chars.charAt(Math.floor(Math.random() * maxPos));
    }
    return pwd;
}

function getSuffix(filename) {
    let pos = filename.lastIndexOf('.')
    let suffix = ''
    if (pos != -1) {
        suffix = filename.substring(pos)
    }
    return suffix;
}

//基于axios封装的接口调用方法，可自行实现

import {request} from 'ueview/utils/http'

import dayjs from "dayjs";

const service = '/system/oss'

const cachedKey = "_ue_client_up_params"

/**

* 获取上传参数，默认会使用在指定有效期内不会发起多次请求

export async function getClientUploadParams() {

if (!checkExpire()) {

return await getParamsFromRemote()

} else {

return JSON.parse(window.sessionStorage.getItem(cachedKey));

}

/**

* 检测上传参数是否过期

* @returns {boolean}

export function checkExpire() {

let cached = window.sessionStorage.getItem(cachedKey) || undefined

if (!cached) {

return false;

}

cached = JSON.parse(cached);

let expire = cached.expire

// 可以判断当前expire是否超过了当前时间，如果超过了当前时间，就重新取一下，5s 作为缓冲。

let now = Date.parse(new Date()) / 1000;

return Number(expire) > now + 5

}

export async function getParamsFromRemote() {

const now = dayjs().format('YYYYMMDD')

const dir = "tmp/" + now + "/"

const result = await request({

url: `${service}/getClientUploadParams?dir=${dir}`,

method: 'get',

})

window.sessionStorage.setItem(cachedKey, JSON.stringify(result))

return result;

}

/**

* 获取随机字符串文件名

* @param fileName

* @returns {string}

export function getRandFileName(fileName) {

let suffix = getSuffix(fileName)

return randStr(10) + suffix

}

function randStr(len) {

len = len || 32;

let chars = 'ABCDEFGHJKMNPQRSTWXYZabcdefhijkmnprstwxyz2345678';

let maxPos = chars.length;

let pwd = '';

for (let i = 0; i < len; i++) {

pwd += chars.charAt(Math.floor(Math.random() * maxPos));

}

return pwd;

}

function getSuffix(filename) {

let pos = filename.lastIndexOf('.')

let suffix = ''

if (pos != -1) {

suffix = filename.substring(pos)

}

return suffix;

}

获取文件上传路径

默认阿里云OSS上传的文件不会返回任何内容，只会返回请求状态为200。如果需要获取上传的文件全路径，可以根据上传参数拼装获取

//文件上传成功回调
const handleUploadSuccess = (res: any, file: UploadFile, files: UploadFiles) => {

   //上传后不会返回地址，需要前端拼接
   let url = conf.action+"/"+uploadData.value.key

}

//文件上传成功回调

const handleUploadSuccess = (res: any, file: UploadFile, files: UploadFiles) => {

//上传后不会返回地址，需要前端拼接

let url = conf.action+"/"+uploadData.value.key

}

优易圈

基于Element-Plus ElUpload组件，实现前端直接上传文件到阿里云OSS服务

需求背景

交互流程示意图

需要开发的内容

1.服务端核心代码

2.客户端

获取文件上传路径

About The Author

yangkui

Add a Comment

需求背景

交互流程示意图

需要开发的内容

1.服务端核心代码

2.客户端

获取文件上传路径

Related Posts

About The Author

yangkui

Add a Comment
